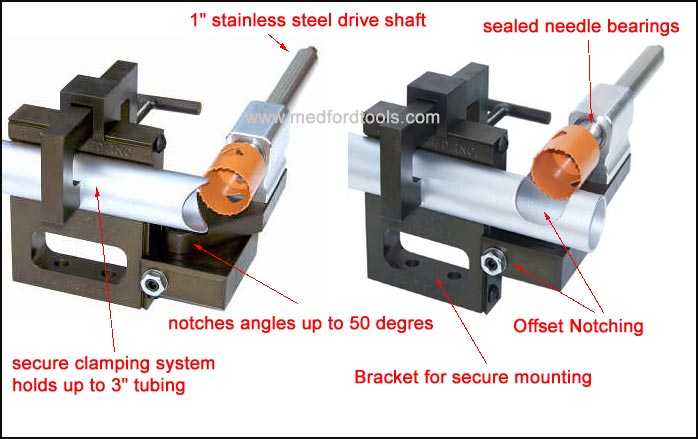

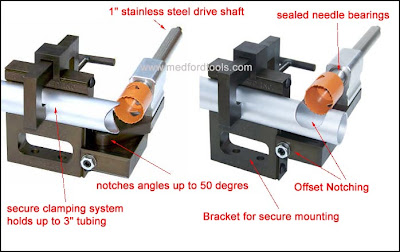

The JD Squared Notchmaster is the notcher for builders who needs quick offset copes in tubing up to 3 inch OD! This design from JD2 is a large capacity, offset-capable addition to the popular JD Squared TN-100 tube notcher. The heavy duty steel frame holds a two-axis adjustable tubing clamp, and the ground and polished stainless shaft can be easily adjusted for offset coping.
The Notchmaster's 1 inch shaft is supported by sealed needle bearings. Using bi-metal hole saws to make the cut, this is an economical way to cope those tough applications!
The Notch Master has the
capability of notching 3/4" through 3" tubing.
Constructed with a steel frame for solid, accurate
cutting. Able to do angle and offset notches, this quality notcher is
a great deal at this current price. .
- Capacity of 3/4" to 3" OD
- Angles up to 50 degrees- - Offset Notching Ability
- All CNC machined
- Heavy duty 1 1/4" thick steel frame
- 2-axis adjustable tubing clamp
- Can offset notch up to 1 1/2" vertically
- 1" Polished Stainless Steel shaft
- Double sealed needle bearings
- Bolts to a table or clamp it in a vise
- Uses inexpensive bi-metal hole saws
- Requires an ordinary 1/2" hand dr - - Made in the USA!
